special gauges
Digital caliper-New Product

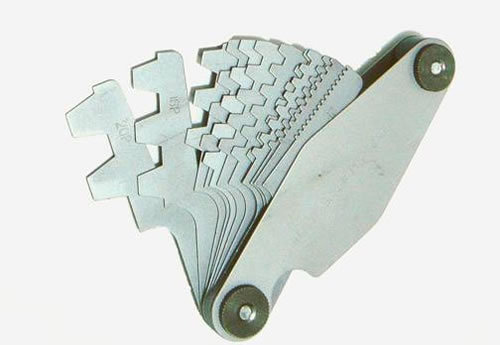

2017 Inch T Screw Pitch Gauge
Type Range pieces Remark
2017-101

1-12 TPI

 16 1 £» 1-1/3 £» 1-1/2 £» 1-3/4 £» 2 £» 2-1/2 £» 3 £» 3-1/2 £» 4 £» 5 £» 6 £» 7 £» 8 £» 9 £» 10 £» 12
2017-102 2-1/2 ¨C12TPI 11 2-1/2 £» 3 £» 3-1/2 £» 4 £» 5 £» 6 £» 7 £» 8 £» 9 £» 10 £» 12
2017-103 2-5 TPI 7 2 £» 2-1/2 £» 3 £» 3-1/2 £» 4 £» 4-1/2 £» 5
2017-104 6-12 TPI 7 6 £» 7 £» 8 £» 9 £» 10 £» 11 £» 12
Metric T Screw Pitch Gauge
Type Range pieces Remark
2017-201 2-20 mm 12

2 £» 3 £» 4 £» 5 £» 6 £» 7 £» 8 £» 9 £» 10 £» 12 £» 16 £» 20

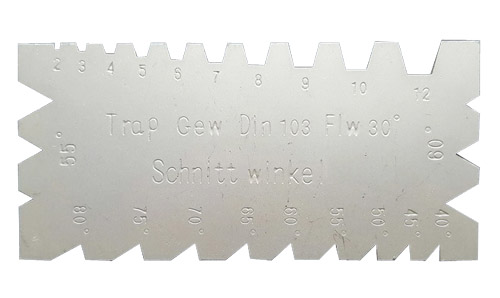

Universal Thread Cutter Gauge
2018 Universal Thread Cutter Gauge
Type square tape angle
2018-101 2;2.5;3;3.5;4;4.5;5;6;7;8;

45 o ; 53 o 8; 55 o ; 60 o ; 70 o

2018-102

2;3;4;5;6;7;8;9;10;12

30 o
2018-103   1;1-1/3;1-1/2;1-3/4;2;2-1/2;3;4;5; 6;7;8;9;10 29 o
2018-104



Whitworth55 oMetrisch 60 o
40 o ;45 o ;50 o ; 55 o ;60 o ;65 o ; 70 o ;75 o ;80 o

2018-105 2;2.5;3;3.5;4;4.5;5;6;7;8 2;3;4;5;6;7;8;9;10;12 Whitworth55 o
Metrisch 60 o
2019
2020
2021
2022
2023

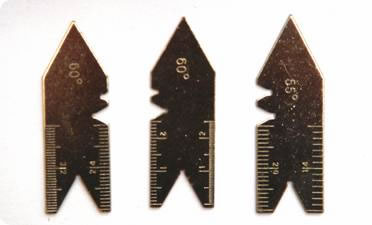

Center Angles Gauge
Type pieces Nominal Angles
1 2 3 4 scale on A scale on B
201 1 60 o 60 o 60 o 60 o

25mm / 1mm 25mm / 0.5mm


202 1 55 o 55 o 55 o 55 o

14ths 20ths


203 1 60 o 60 o 60 o 60 o

14ths 20ths

24ths 32ths

      2024 2025 2026
