Electronic Indicators
Electronic Indicator & Electronic Micro-Indicator
1831-1
1831-2
1831-3
1832-1
1832-2
1832-3
  • Function Type I
    Manual power off ,zero setting and Metric/Inch system conversion at any position.
  • Function Type II
    Auto power on/off ,zero setting and Metric/Inch system conversion at any position.
    With data output interface.
    With multifunction button,easy for maximum or minimum measuring value tracing during measurements.
Item No.
Range
Resolution
Accuracy
A
Function
1831-101
0~10mm
0.01mm
¡À0.02mm
8mm
I
1831-112
0~12.7mm/0~0.5"
0.01mm/0.001"
¡À0.02mm
3/8"
I
1831-103
0~20mm
0.01mm
¡À0.02mm
8mm
I
1831-114
0~25.4mm/1"
0.01mm/0.001"
¡À0.02mm
3/8"
I
1831-201
0~10mm
0.01mm/0.001"
¡À0.02mm
8mm
II
1831-212
0~12.7mm/0~0.5"
0.01mm/0.001"
¡À0.02mm
3/8"
II
1831-203
0~20mm
0.01mm/0.001"
¡À0.02mm
8mm
II
1831-214
0~25.4mm
0.01mm/0.001"
¡À0.03mm
8mm
II
1831-215
0~12mm
0.01mm/0.005"
¡À0.02mm
8mm
II
1831-216
0~25mm/1"
0.01mm/0.005"
¡À0.02mm
3/8"
II
1832-101
0~3mm
0.001mm
¡À0.005mm
8mm
I
1832-102
0~5mm/0.2"
0.001mm/0.00005"
¡À0.005mm
8mm
I
1832-112
0~5mm/0.2"
0.001mm/0.00005"
¡À0.005mm
3/8"
I
1832-103
0~10mm
0.001mm
¡À0.005mm
8mm
I
1832-114
0~12.7mm/0.5"
0.001mm
¡À0.006mm
3/8"
I
1832-105
0~25mm
0.001mm
¡À0.009mm
8mm
I
1832-201
0~3mm
0.001mm
¡À0.005mm
8mm
II
1832-202
0~5mm/0.2"
0.001mm/0.00005"
¡À0.005mm
8mm
II
1832-212
0~5mm/0.2"
0.001mm/0.00005"
¡À0.005mm
3/8"
II
1832-203
0~10mm
0.001mm
¡À0.005mm
8mm
II
1832-214
0~12.7mm/0.5"
0.001mm
¡À0.006mm
3/8"
II
1832-205
0~25mm
0.001mm
¡À0.009mm
8mm
II
1832-216
0~12mm
0.001mm/0.00005"
¡À0.005mm
8mm
II
1832-207
0~25mm
0.001mm/0.00005"
¡À0.006mm
8mm
II

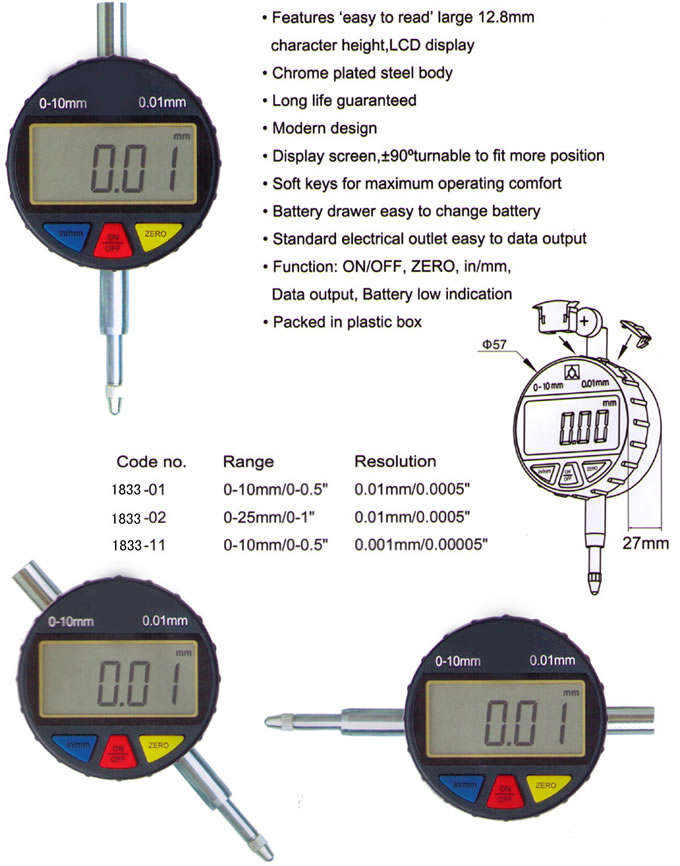

Item No: 1833
