Digital calipers(<1><2><3>)
Metal-housing Digital Calipers
Click on for steel module!
Click on for plastic module!

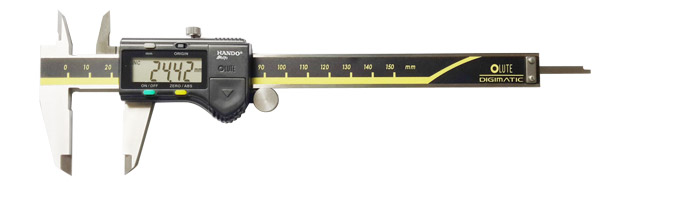

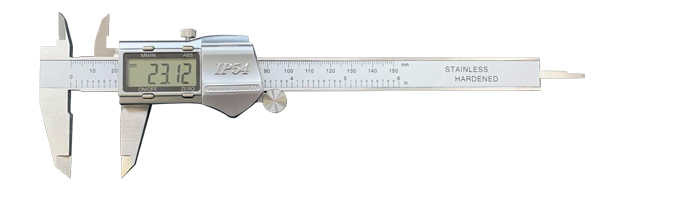

NO.1299 IP54
  • With durable and premium metal display housing.
  • Large LCD display for easy reading.
  • One 1.55V SR44 battery can last about 12 months.
  • Low voltage warning by flashing display
  • Manual ON/OFF or auto power off.
  • Resolution: 0.01mm/.0005".

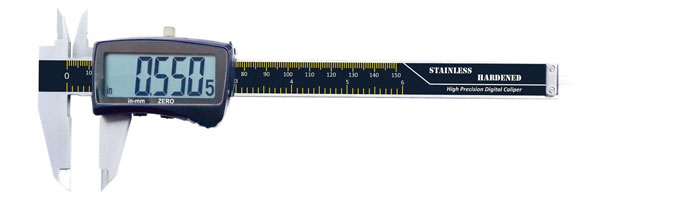

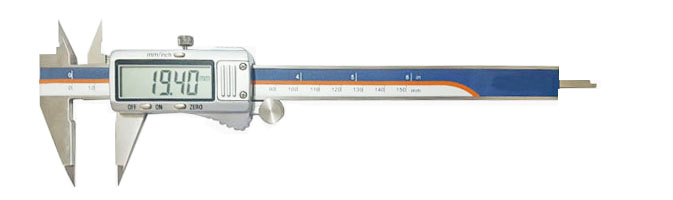

NO.1300 waterproof
  • With durable and premium metal display housing.
  • Large LCD display for easy reading.
  • One 3.0v battery can last about 12 months.
  • Low voltage warning by flashing display
  • Manual ON/OFF or auto power off.
  • Resolution: 0.01mm/.0005".

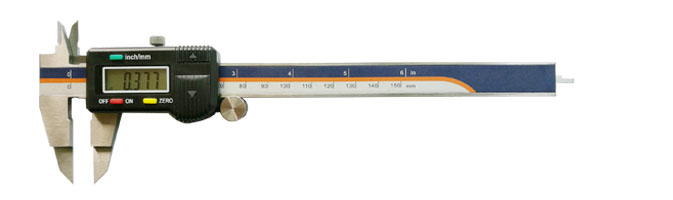

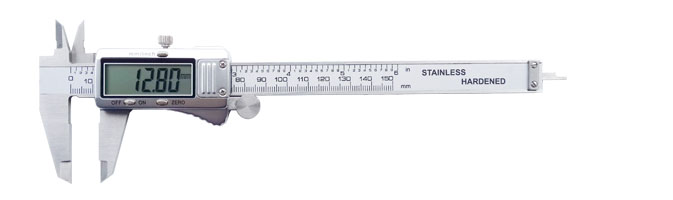

NO.1301
  • With durable and premium metal display housing.
  • Large LCD display for easy reading.
  • One 1.55V SR44 battery can last about 12 months.
  • Low voltage warning by flashing display
  • Manual ON/OFF or auto power off.
  • Resolution: 0.01mm/.0005".

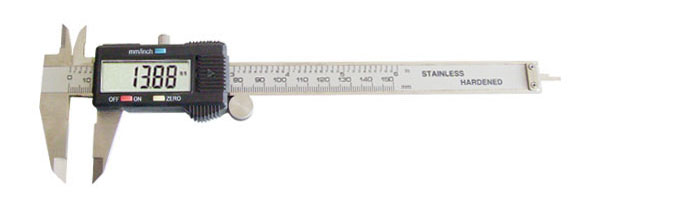

NO.1302
  • Four way measurement(inside,outside,step and depth)
  • Metal casing,super large LCD for easy reading.
  • Metric/Inch system conversion and zero setting at any position.
  • With RS232 data output interface and manual Power on/off.
  • Made of stainless steel
Digital caliper
Item No.
(Stainless steel )		 Range
(mm/in) 		Resolution
(mm/in)
1299-10s 0~150/6" 0.01mm/0.0005"
1299-15s 0~200/8" 0.01mm/0.0005"
1299-20s 0~300/12" 0.01mm/0.0005"
1300-10s 0~100/4" 0.01mm/0.0005"
1300-15s 0~125/5" 0.01mm/0.0005"
1300-20s 0~150/6" 0.01mm/0.0005"
1300-25s 0~200/8" 0.01mm/0.0005"
1300-30s 0~250/10" 0.01mm/0.0005"
1300-35s 0~300/12" 0.01mm/0.0005"
1301-10s 0~100/4" 0.01mm/0.0005"
1301-15s 0~125/5" 0.01mm/0.0005"
1301-20s 0~150/6" 0.01mm/0.0005"
1301-25s 0~200/8" 0.01mm/0.0005"
1301-30s 0~250/10" 0.01mm/0.0005"
1301-35s 0~300/12" 0.01mm/0.0005"
1302-15C 0~150/6" 0.01mm/0.0005"
1302-15C 0~200/8" 0.01mm/0.0005"
1302-15C 0~300/12" 0.01mm/0.0005"

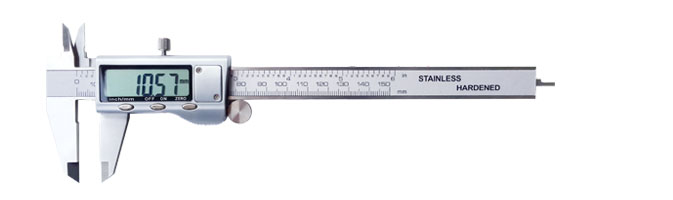

NO.1303  Extra lcd
  • Four way measurement(inside,outside,step and depth).
  • Super large LCD for easy reading.
  • Metric/Inch system conversion and zero setting at any position, relative and absolute measurement.
  • With RS323 data output interface and manual power on/off.
  • With thumb roller or without thumb roller regarding customer demand.
  • Made of stainless steel.

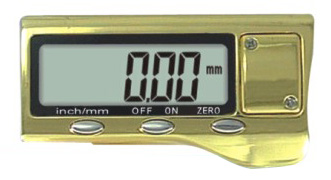

NO.1304
  • water proof , Anti-rust.
  • Manual ON/OFF or auto power off.
  • metric/inch conversion at any positio..
  • range:150-300mm.
  • Resolution: 0.01mm/.0005".
NO.1305 FUll LCD
  • Four way measurement(inside,outside,step and depth)
  • Metal casing,super large LCD for easy reading.
  • Metric/Inch system conversion and zero setting at any position.
  • manual Power on/off.
  • Made of stainless steel
Item No.
(Stainless steel )		 Range
(mm/in) 		Resolution
(mm/in)
1303-10s 0~100/4" 0.01mm/0.0005"
1303-15s 0~125/5" 0.01mm/0.0005"
1303-20s 0~150/6" 0.01mm/0.0005"
1303-25s 0~200/8" 0.01mm/0.0005"
1303-30s 0~250/10" 0.01mm/0.0005"
1303-35s 0~300/12" 0.01mm/0.0005"
1304-10s 0~100/4" 0.01mm/0.0005"
1304-15s 0~125/5" 0.01mm/0.0005"
1304-20s 0~150/6" 0.01mm/0.0005"
1304-25s 0~200/8" 0.01mm/0.0005"
1304-30s 0~250/10" 0.01mm/0.0005"
1304-35s 0~300/12" 0.01mm/0.0005"
1305-10s 0~150/6" 0.01mm/0.0005"
1305-15s 0~200/8" 0.01mm/0.0005"
1305-20s 0~300/12" 0.01mm/0.0005"

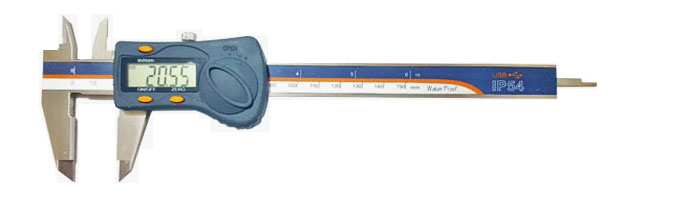

NO.1306
  • Four way measurement (inside,outside,step and depth)
  • Metric/Inch system conversion and zero stting at any position
  • With RS232 data output interface and manual power on/off
  • with thumb roller or without thumb roller regarding customer demand
  • Made of stainless steel,ip54 waterproof.

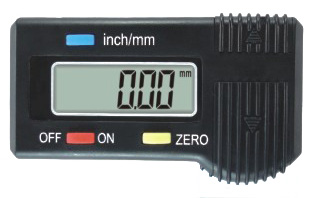

NO.1307
  • Four way measurement (inside,outside,step and depth)
  • Metric/Inch system conversion and zero stting at any position
  • With function ABS,TOL,HOLD,ORIGIN regarding customer demand
  • with thumb roller or without thumb roller regarding customer demand
  • Made of stainless steel
Item No.
(Stainless steel )		 Range
(mm/in) 		Resolution
(mm/in)
1306-10s 0~100/4" 0.01mm/0.0005"
1306-10s 0~150/6" 0.01mm/0.0005"
1306-10s 0~100/4" 0.01mm/0.0005"
1306-15s 0~200/8" 0.01mm/0.0005"
1306-15s 0~300/12" 0.01mm/0.0005"
1307-15s 0~150/6" 0.01mm/0.0005"
1307-20s 0~150/6" 0.01mm/0.0005"
1307-20s 0~200/8" 0.01mm/0.0005"
1307-20s 0~300/12" 0.01mm/0.0005"
