Mill Chuck Series
DA Collets
Item No.
d
(mm)
(inch)
3350-DA10
1~14
1/32~35/64
3350-DA18
1~20
1/32~25/32
3350-DA20
1~10
1/32~25/64
3350-DA30
1~6
1/32~15/64
3350
Spring Collets
3351
Item No.
D
L1
L2
d

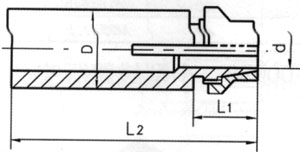

3351-1
1/2"
26mm
100mm
1/4"
3351-2
12mm
26mm
100mm
6mm
3351-3
27mm
35mm
145mm
12mm
3351-4
27mm
35mm
145mm
1/2"
3351-5
32mm
35mm
145mm
12mm
3351-6
32mm
35mm
145mm
1/2"
Spring Collets
3352
Item No.
d(inch)
Item No.
d(inch)
Item No.
d(mm)
Item No.
d(mm)
3352-1/18
1/18
3352-1/4
1/4
3352-02
2
3352-05
5
3352-1/8
1/8
3352-5/16
5/16
3352-03
3
3352-06
6
3352-3/16
3/16
-
-
3352-04
4
3352-08
8
7:24 Collets
3353
Item No.
3353A-d
3353B-d
3353C-d
D(mm)
22.225
32.21
44.45
L(mm)
47.6
57
69
Hole
size
inch
1/8~1/2
1/4~3/4
1/64~1-17/64
mm
1~12
1`20
1~32
TG Collets
3354
Itme No.
L(mm)
D(mm)
Hole size (d)
mm
inch
3354-Ad
46.9
27
1~20
1/16~25/32
3354-Bd
60.5
35
1.6~25
1/16~1
3354-Cd
76.2
50.8
2~40
3/32~1-9/16
ER Collets
3355 series Standard DIN6499B
Model
d (H7)
D
D1
D2
L
L1
L2
L3
Collapsible
capacity

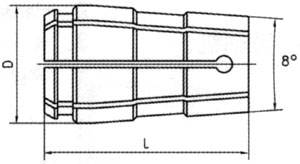

3355-ER8
0.5~5.0
8
8.5
6.5
13.5
2.7
1.5
1.2
0.5
3355-ER11
1.0~7.0
11
11.5
9.5
18.0
3.8
2.5
2.0
0.5
3355-ER16 A
1.0~2.0
16
17
13.8
27.5
6.26
4.0
2.7
0.5
3355-ER16B
>2.0~10.0
1.0
3355-ER20 A
1.0~2.5
20
21
17.4
31.5
6.36
4.8
2.8
0.5
3355-ER20B
>2.5~13.0
1.0
3355-ER25A
1.0~2.5
25
26
22.0
34.0
6.66
5.0
3.1
0.5
3355-ER25B
>2.5~16.0
1.0
3355-ER32A
2.0~2.5
32
33
29.2
40.0
7.16
5.5
3.6
0.5
3355-ER25B
>3.5~20.0
1.0
3355-ER40
3.0~26.0
40
41
36.2
46.0
7.66
7.0
4.1
1.0
3355-ER50A
6.0~10.0
50
52
64.0
60.0
12.6
8.5
5.5
1.0
3355-ER50B
>10.0~34.0
2.0
ER NUTS

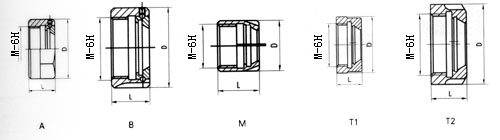

3356 series
Item No.
Model
D
(mm)
L
(mm)
M
Item No.
Model
D
(mm)
L
(mm)
M
3356-ER11A
A
19
11.13
M14x0.75
3356-ER28M
M
28
19
M24x1
3356-ER16A
A
28
17.5
M22x1.5
3356-ER35M
M
35
20
M30x1
3356-ER20A
A
35
19
M25x1.5
3356-ER11T1
T1
22.5
11.3
M14x0.75
3356-ER25B
B
42
20
M32x1.5
3356-ER16T1
T1
25.5
17.5
M22x1.5
3356-ER32B
B
50
22.5
M40x1.5
3356-ER20T1
T1
35
19
M25x1.5
3356-ER40B
B
63
25.5
M50x1.5
3356-ER25T2
T2
42
20
M32x1.5
3356-ER50B
B
78
35.5
M64x2
3356-ER32T2
T2
50
22.5
M40x1.5
3356-ER8M
M
12
12
M10x0.75
3356-ER40T2
T2
63
25.5
M50x1.5
3356-ER11M
M
16
12
M13x0.75
3356-ER50T2
T2
78
35.5
M64x2
3356-ER16M
M
22
18
M19x1
-
-
-
-
-
ER Spanner
3357A
Item No.
B(mm)
L(mm)
Clamping Nut
3357A-ER11
17
117
3356-ER11A, 3356-ER11T1
3357A-ER16
25
135
3356-ER16A, 3356-ER16T1
3357A-ER20
30
175
3356-ER20A, 3356-ER20T1
3357B
Item No.
B(mm)
L(mm)
Clamping Nut
3357B-ER25
37
210
3356-ER25B, 3356-ER25T2
3357B-ER32
45
250
3356-ER32B, 3356-ER32T2
3357B-ER40
58
290
3356-ER40B, 3356-ER40T2
3357B-ER50
72
350
3356-ER50B, 3356-ER50T2
3357C
Item No.
L(mm)
Size(mm)
Clamping Nut
3357C-ER25
168
38-42
3356-ER25B, 3356-ER25T2
3357C-ER32
190
250
3356-ER32B, 3356-ER32T2
3357C-ER40
210
55-63
3356-ER40B, 3356-ER40T2
3357C-ER50
240
78-85
3356-ER50B, 3356-ER50T2
3357D
Item No.
B(mm)
L(mm)
Clamping Nut
3357D-ER8
8
70
3356-ER8M
3357D-ER11
11.5
90
3356-ER11M
3357D-ER16
15
110
3356-ER16M
3357D-ER20
19.5
120
3356-ER20M
3357D-/ER25
25
130
3356-ER25M
