Collet Series
CM6125 Collets
3313
Item No.
Hole size(D)
3313-D
3~16mm
Shurpener Collets
3314
Item No.
Hole size (D)
inch
mm
3314-D
1/8, 3/16, 1/4, 5/16, 3/8, 7/16 1/2, 9/16, 5/8
3, 5, 6, 8, 10, 11, 13, 14, 16

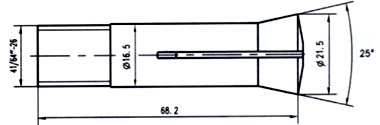

3AT Collets
3315R (Round)
3315S (Square)
3315H (Hex)
Item No.
Type
Clamping range
mm
Inch
3315R
Round
1~13
3/64~1/2
3315S
Square
3~9
1/8~3/8
3315H
Hex
3~11
1/8~7/16

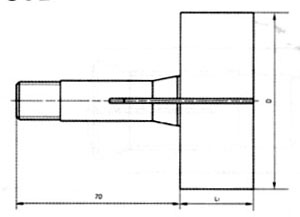

3AT Step Collets
3316
Item No.
3316-2-L1
3316-3-L1
D(inch)
2
3
L1(inch)
1
1-1/8
1-3/16
1
1-1/8
1-3/16

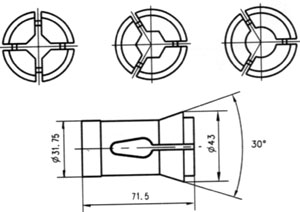

3C Collets
3317R (Round)
3317S (Square)
3317H(Hex)
Item No.
Type
Clamping range
mm
Inch
3317R
Round
1~13
1/16-1/2
3317S
Square
3~9
1/8~11/32
3317H
Hex
3~11
1/8~7/16
3C Step Collets
3318
Item No.
3318-2-L1
3318-3-L1
D(inch)
2
3
L1(inch)
1
1-1/8
1-3/16
1
1-1/8
1-3/16

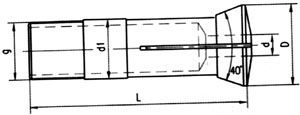

DIN6341 Collets
3319
Item No.
L(mm)
D max(mm)
Thread g
3319-08
45
5
M8x0.75
3319-10
52
6
TR10x1
3319-12
60
8
TR12x1
3319-16
70
11
TR16x1.5
3319-20
80
15
TR20x1.5
3319-23
90
18
tr23x1.5
3319-28
100
22
TR28x1.5
3319-32
110
27
TR32x1.5
3319-45
140
36
TR45x1.5
B&S 21# Coolets
3320 series
Hole size : 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/12, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1"
25B Collets
3321 series :D=2~28 step 1
