Rotary Burr <1> <2>

	NO.4631	Edge D	Edge L	Shank r	L		NO.4632	Edge D	Edge L	Shank r	L
	A0314M06	3	14	6	50		b0314M06	3	14	6	50
	A0414M06	4	14	6	50		b0414M06	4	14	6	50
	A0616M06	6	16	6	50		b0618M06	6	18	6	50
	A0820M06	8	20	6	63		b0818M06	8	18	6	63
	A1020M06	10	20	6	65		b1020M06	10	20	6	65
	A1225M06	12	25	6	70		b1225M06	12	25	6	70
	A1625M06	16	25	6	70		b1625M06	16	25	6	70
	A2025M06	20	25	6	70		b2025M06	20	25	6	70
	NO.4633	Edge D	Edge L	R	L		NO.4634	Edge D	Edge L	a	L
	c0314M06	3	14	1.5	50		d0303M06	3	2.7	6	50
	c0414M06	4	14	2	50		d0403M06	4	3.5	6	50
	c0618M06	6	18	3	50		d0605M06	6	5	6	50
	c0818M06	8	18	4	63		d0807M06	8	7	6	52
	c1020M06	10	20	5	65		d1009M06	10	9	6	54
	c1225M06	12	25	6	70		d1210M06	12	11	6	56
	c1625M06	16	25	8	70		d1614M06	16	15	6	60
	c2025M06	20	25	10	70		d2014M06	20	18	6	63
	NO.4635	Edge D	Edge L	R	L		NO.4636	Edge D	Edge L	R	L
	e0406M06	4	6	1.2	50		g0313M06	3	13	15	55
	e0609M06	6	9	2.5	50		g0618M06	6	18	26	55
	e0814M06	8	14	3.7	59		g0820M06	8	20	27	55
	e1016M06	10	16	4	61		g1020M06	10	20	28	65
	e1220M06	12	20	5	65		g1225M06	12	25	30	65
	e1625M06	16	25	6.5	70		g1625M06	16	25	40	65
	e2025M06	20	25	8	70		The shank diameter is 6mm, to same
	The shank diameter is 6mm, to same
	NO.4637	Edge D	Edge L	Shank r	L		NO.4638	Edge D	Edge L	R	L
	j0405M06	4	5	60	50		h0414M06	4	14	0.8	50
	j0607M06	6	7	60	50		h0618M06	6	18	1	50
	j0809M06	8	9	60	54		h0818M06	8	18	1.5	63
	j1011M06	10	11	60	56		h1020M06	10	20	2	65
	j1213M06	12	13	60	58		h1225M06	12	25	2.5	70
	j1618M06	16	18	60	63		h1628M06	16	28	2.5	73
	j2020M06	20	20	60	65		h2035M06	20	35	2.5	75
	The shank diameter is 6mm, to same						The shank diameter is 6mm, to same
	NO.4639	Edge D	Edge L	a	L		NO.4640	Edge D	Edge L	Shank r	L
	k0404M06	4	4	90	50		M0412M06	4	12	14	50
	k0606M06	6	6	90	50		m0618M06	6	18	14	50
	k0807M06	8	7	90	52		m0818M06	8	18	20	60
	k1008M06	10	8	90	53		m1020M06	10	20	25	65
	k1210M06	12	10	90	55		m1225M06	12	25	25	70
	k1612M06	16	12	90	57		m1625M06	16	25	25	70
	k2014M06	20	14	90	59		m2025M06	20	25	25	70
	The shank diameter is 6mm, to same						The shank diameter is 6mm, to same
	NO.4641	Edge D	Edge L	a	L		NO.4645	Edge D	Edge L	R	L
	n0304M06	3	4	10	55		l0313M06	3	13	0.9	55
	n0607M06	6	7	10	65		l0616M06	6	16	1.2	55
	n0810M06	8	10	10	65		l0822M06	8	22	1.4	55
	n1010M06	10	10	20	65		l1025M06	10	25	2.2	65
	n1213M06	12	13	20	65		l1228M06	12	28	3	65
	n1616M06	16	16	20	65		l1633M06	16	33	4.5	65
	The shank diameter is 6mm, to same						The shank diameter is 6mm, to same
	NO.4646	Edge D	Edge L	R	L		NO.4642	Edge D	Edge L	R	L
	f0313M06	3	13	0.8	55		w2504m06	25	4	3.5	45
	f0618M06	6	18	1.5	65		w1603m06	16	3	2.8	45
	f0820M06	8	20	2	65		The shank diameter is 6mm, to same
	f1020M06	10	20	2.5	65
	f1225M06	12	25	3	65
	f1625M06	16	25	3.5	65
	The shank diameter is 6mm, to same

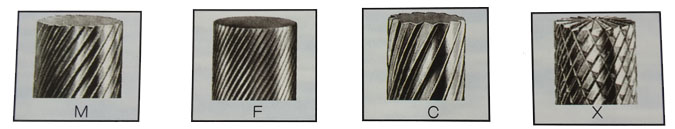

Explanation Of Cuttype Rotary File
